KV1000 Temperature Measurement Safety Early Warning System
The KV1000 Temperature Measurement Safety Early Warning System is a lightweight solution independently developed by Jinan Hope-Wish Photoelectric Technology Co., Ltd., specifically designed for scenarios requiring temperature monitoring.
The system is tailored for non-contact temperature measurement, enabling large-area, accurate, and efficient temperature detection and screening. It is widely applicable in scenarios such as over-temperature alerts for livestock in farms, industrial over-temperature monitoring, and temperature measurement in power systems.
Product Details
Key Features:
1.Safety: Utilizes infrared non-contact temperature measurement, ensuring higher safety
2.High Efficiency: Supports simultaneous multi-point detection with a detection time of less than 1 second
3.High Accuracy: High-precision non-contact temperature measurement with an accuracy better than ±0.5°C (manual calibration)
4.Stability: Features automatic temperature calibration, ensuring stable long-term measurement performance
5.Intuitive Visualization: High-resolution infrared imaging for large-scale scenes, enabling precise identification of abnormal temperature points
6.Intelligent Alarming: Supports configurable temperature thresholds and automatic screening with early warning mechanisms; triggers instant alerts for abnormal temperatures
7.24/7 Operation: Enables continuous real-time temperature monitoring and early warning intervention
8.Traceability: Supports historical data retrieval, analysis, and data mining
Application Scenarios:
Widely applicable in scenarios such as over-temperature alerts for livestock in farms, industrial over-temperature monitoring, and temperature measurement in power systems.
Product Specifications
The Temperature Measurement Safety Early Warning System consists of front-end cameras and a back-end platform.
1.The front-end supports precise temperature measurement in the range of 30°C to 45°C with an accuracy of ±0.5°C, suitable for temperature screening of humans and animals in scenarios such as farms and entrances of enterprises and institutions.
2.It also supports wide-range temperature measurement from -20°C to +550°C with an accuracy of ±2°C, making it suitable for industrial production, power systems, aging laboratories, and over-temperature warning on conveyor belts.

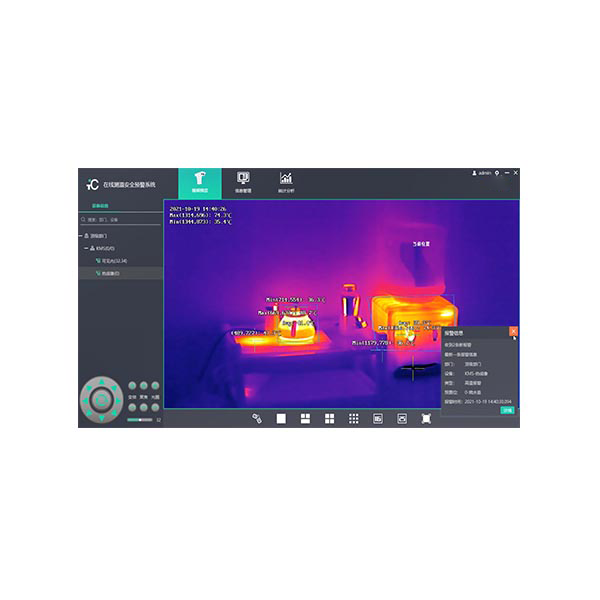

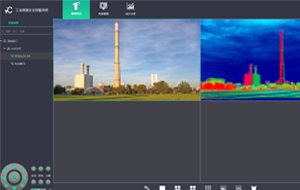

Main Interface
Department Management Interface
(It allows for department and permission management, facilitating use by different users.)
The system allows for the custom addition of departments, with a maximum of 5 levels. Each department can have multiple sub-departments. A top-level department is automatically created during system installation. This top-level department can only be edited, not deleted.
The system supports customizing user roles. Permissions can be defined for each role, along with the photoelectric devices that the role allows access to. Roles are associated with specific departments, and user roles within a department are not shared across other departments.

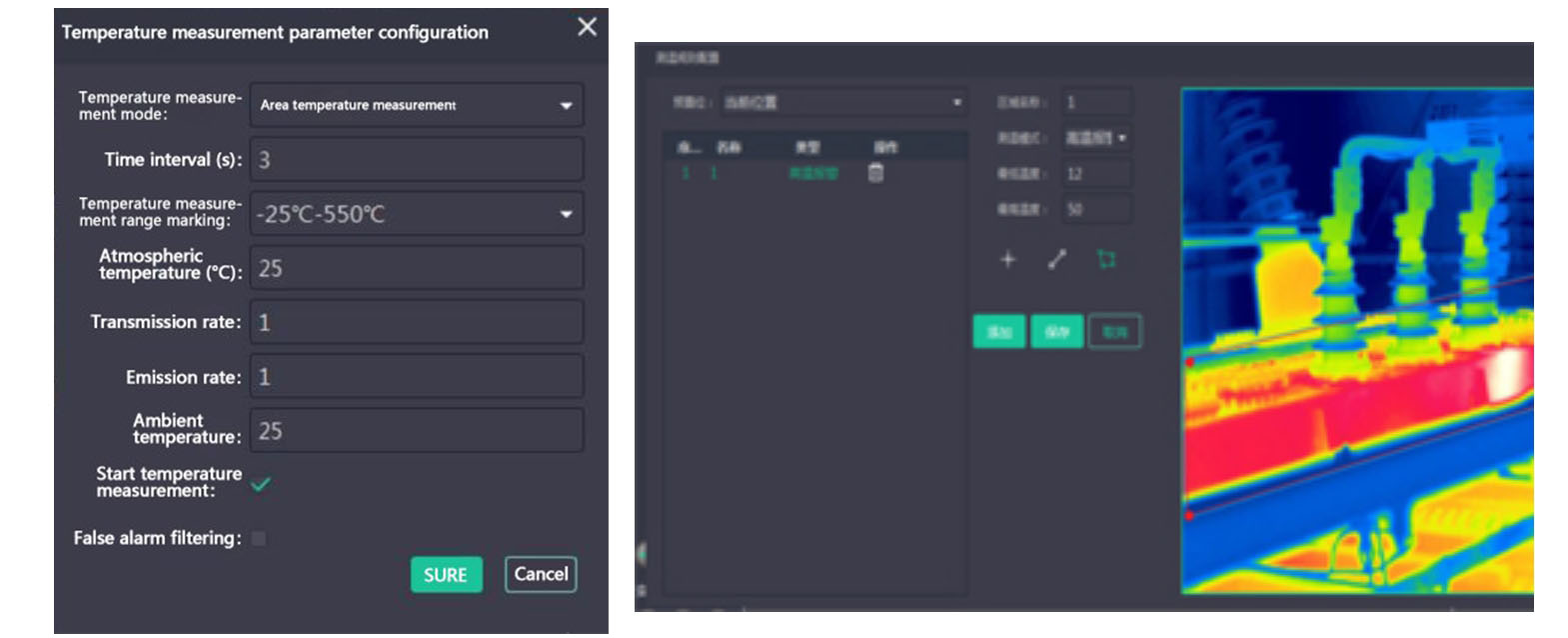

Temperature measurement parameters and rule configuration
(Set temperature thresholds and measurement rules; supports setting rules for points, lines, and areas)
The system performs real-time analysis of thermal image videos. Users can manually define temperature measurement areas in the form of points, lines, or polygons. Each preset point supports up to 16 measurement zones. The system also offers various alarm functions, including high-temperature alarms, low-temperature alarms, average-value alarms, sudden temperature changes alarms, and background temperature difference alarms.

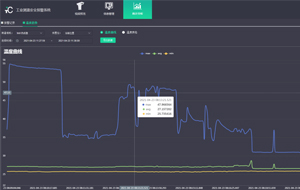

Statistical Analysis Interface
(Historical data can be statistically analyzed and exported for easy data analysis.)
The system supports displaying historical temperature data in the form of charts and tables. It also allows for exporting images and tables, as well as online playback of historical alarm videos and screenshots.
